- Smart 48V POE NVR 8/16CH GSA-4NVR-3P4/GSA-8NVR-3P8
| Feature： |
| •Support 4/16ch full 4k video real-time access, 1U, 2 SATA ports |
| •Support H.265/H.264 stream, embedded Linux operating |

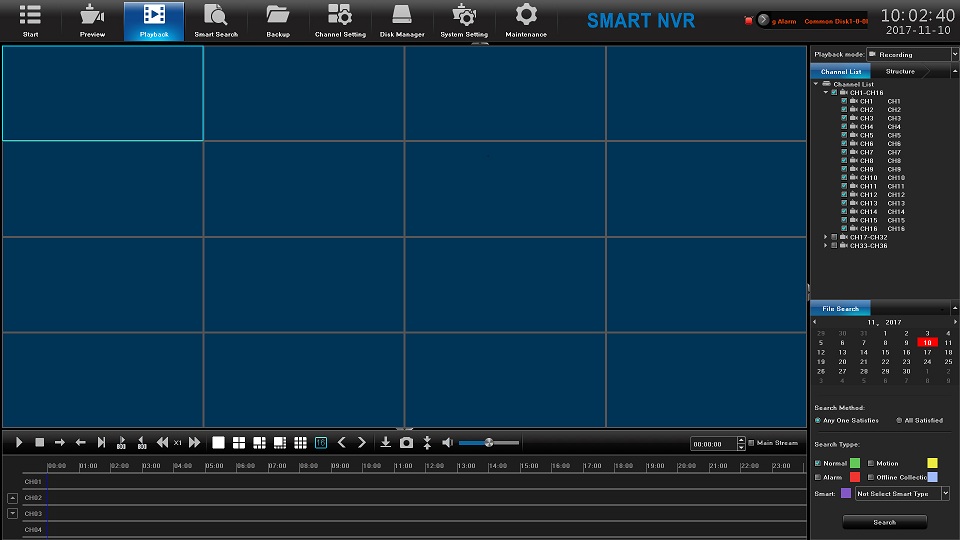

| •Support video playback, remote monitoring and backup. |
| •Support preview and playback with 12 times electronic amplification. |
| •Standard ONVIF, RTSP, GB28181 protocol. |
| •Support DDNS, EMAIL, UPNP, NTP, etc. |
| •Support Web, mobile monitoring, PC client,CMS software. |
| •Support P2P. |
| •Support channel grouping, preview cycle. |
| •Support 4/16ch sub stream video synchronous playback and multi channel synchronous playback. |
• Support dual password authentication. |
| Technical specification | ||
| Model | GSA-8NVR-PE2 | GSA-16NVR-PE |
| System | ||
| Operating System | Embedded Linux operating System | |
| Video | ||
| Video input | 4CH 4K/5MP/3MP/1080P/960P/720P input | 16CH 4K/5MP/3MP/1080P/960P/720P input |

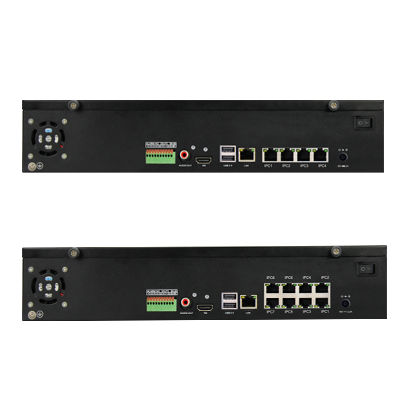

| POE slot | 4ch poe slot | 8ch poe slot |
| Video output | VGA/HDMI， 1920×1080@60HZ | |
| Video bit rate | 16-8000Kbps | |
| Image preview | 1/4channel | 1/4/6/8/9 /16channel |
| Video compression | H.265/H.264/MJPEG | |
| Capture mode | Schedule/Manual, JPEG format | |
| Audio | ||
| Audio port | 1ch output | |
| Audio compression | G.711A | |
| Storage | ||
| HDD port | 2 SATA ports | |
| Capacity | Support 8TB HDD | |
| Alarm | ||
| Motion detection | Support image set to 396 (22*18) detection areas, multistage sensitivity | |

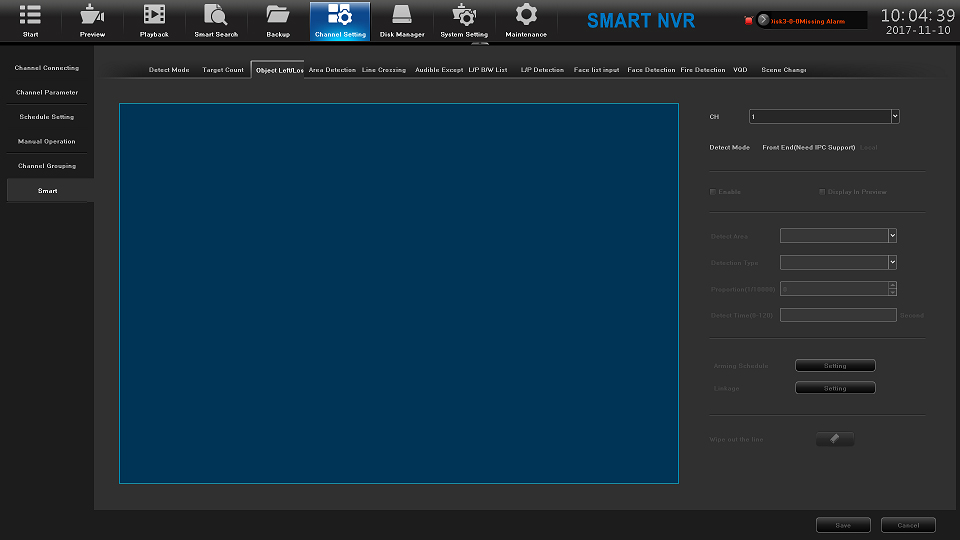

| Smart detection | Motion detection, video miss, video occlusion, occlusion alarm | |
| Network management | ||
| Network protocol | TCP/IP,HTTP,DDNS,SMTP(SSL),DHCP,PPPOE,UPNP,NTP | |
| Compliance protocol | ONVIF, RTSP, Slink | |
| Remote application | WEB(IE, Chrome, Firefox, Safiri), IOS, Android Mobile monitor | |
| Others | Dual password authentication | |
